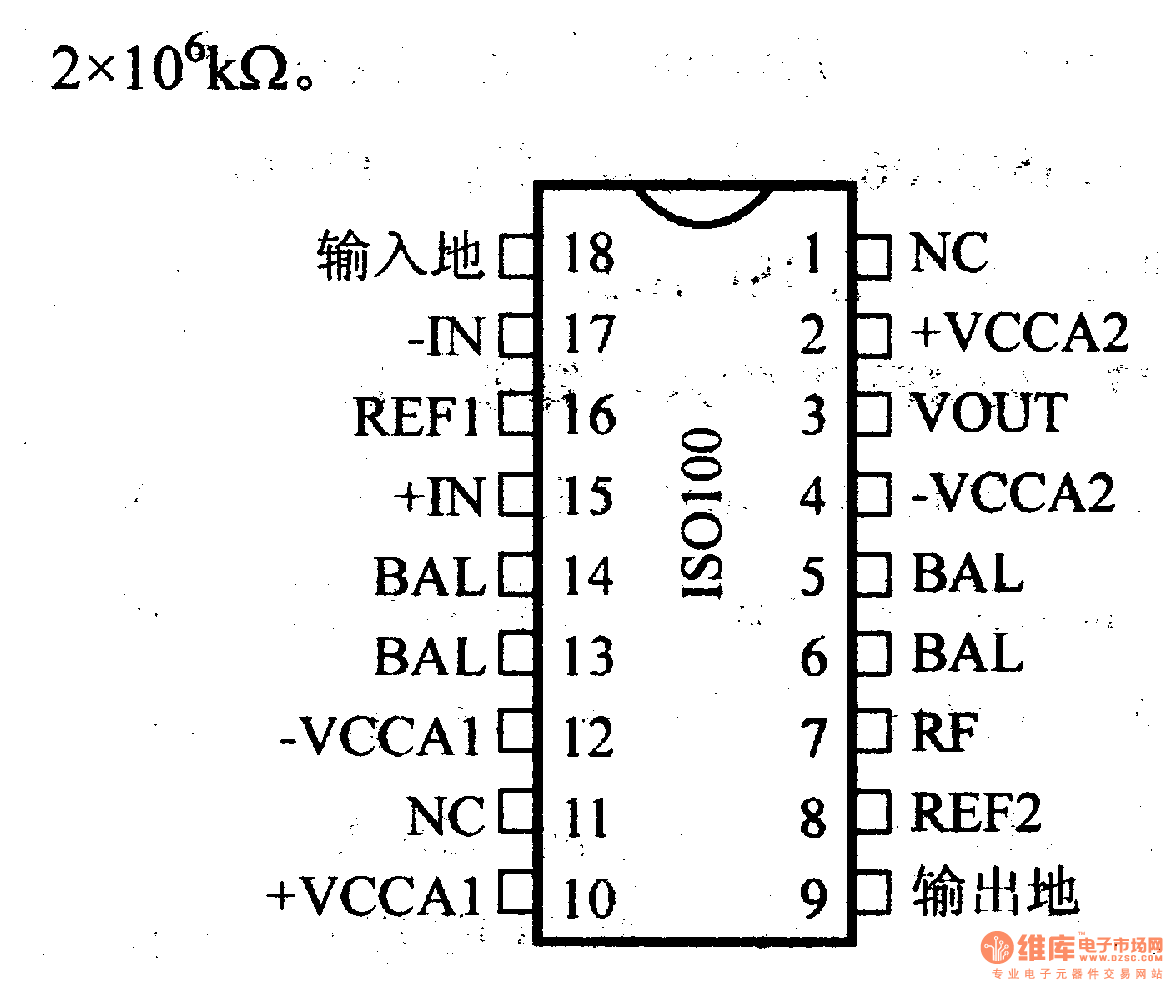

ISO100 broadband isolation amplifier and its pin main characteristics

Published:2013/1/10 2:46:00 Author:Ecco | Keyword: broadband isolation amplifier , pin main characteristics | From:SeekIC

The maximum operating voltage is ± 18V; isolation voltage is 2500V; input current range is ± 1mA (Vout / in = RF); leakage current is less than 0.3μA; bandwidth is 60kHz; the total analog rejection ratio CMRR = 90dB; common-mode input voltage is ± 10V; output impedance is 2000000kΩ.
