IR_REMOTE_CONTROL_REPEATER

Published:2009/7/14 7:41:00 Author:May | From:SeekIC

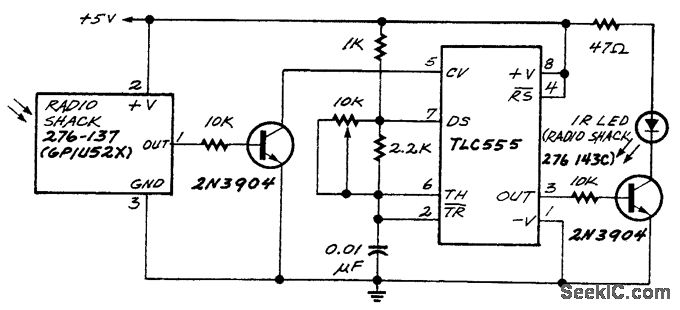

This circuit receives TV remote-control signals and retransmits them. The 555 oscillator provides 40-kHz modulation. The IR LED can be placed in another room.
