INVERTING_AC_AMPLIFIER

Published:2009/6/29 22:21:00 Author:May | From:SeekIC

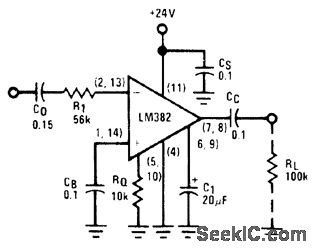

Provides gain of 40 dB when using 24-V supply and input impedance greater than 10K. Low-frequency performance is flat to 20 Hz. Design procedure is given.- Audio Handbook, National Semiconductor, Santa Clara, CA,1977, p 2-20-2-24.
