INTEGRATED_CIRCUIT_DIFFERENTIAL_AMPLIFIER

Published:2009/7/15 20:32:00 Author:Jessie | From:SeekIC

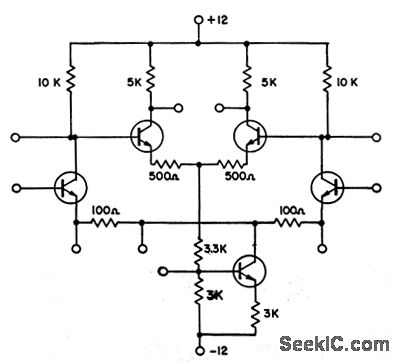

Common-mode output is 0.5mV peak-to-peak, differential gain is 540, and common-mode rejection is 120 db at 60 cps in Amelco D13001: monolithic integrated circuit.-T. Prosser, How to Measure Differential. Amplifier Common-Mode Rejection, EEE, 12:7, p 74-75.
