INSTRUMENTATION_AMPLIFIER

Published:2009/6/24 21:42:00 Author:Jessie | From:SeekIC

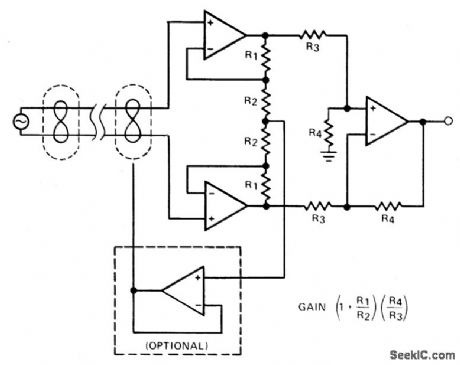

Instrumentation amplifiers (differential amplifiers) are specifically designed to extract and amplify small differential signals from much larger common mode voltages. To serve as building blocks in instrumentation amplifiers, op amps must have very low offset voltage drift, high gain and wide bandwidth.The HA-4620/5604 is suited for this application. The optional circuitry makes use of the fourth amplifier section as a shield driver which enhances the ac common mode rejection by nullifying the effects of capac itance -to-ground mismatch between input conductors.
