INPUT_CHANGE_RATE_TRIGGERED_RELAY

Published:2009/7/14 20:53:00 Author:May | From:SeekIC

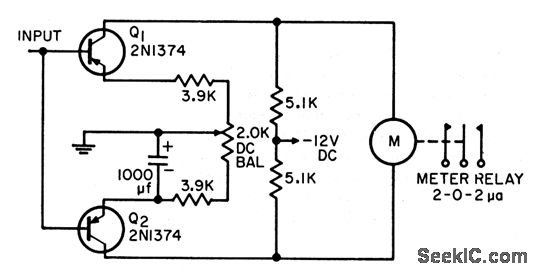

Sensitive and stable d-c amplifier operates relay only on rapid changes of input voltage, yet is immune lo drift. Will also operate on ac signal, which is the some as rapidly changing d-c signal-Rate Circuit, Electronic Circuit Design Handbook, Mactier Pub. Corp. N.Y.1965, p239.
