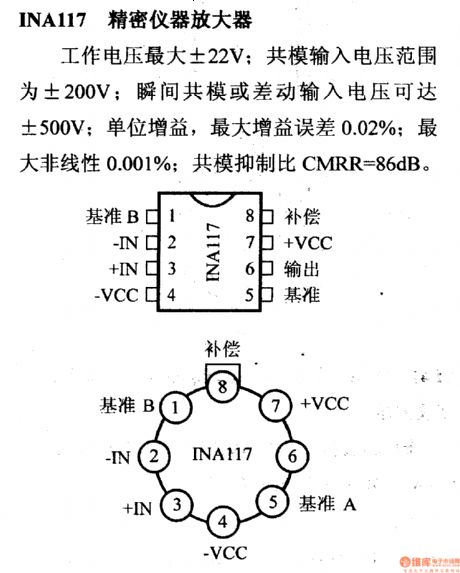

INA117 precision instrumentation amplifier and its pin main characteristics

Published:2013/1/4 1:34:00 Author:Ecco | Keyword: precision instrumentation amplifier , pin main characteristics | From:SeekIC

Maximum working voltage is ± 22V; common-mode input voltage range is ± 200V; instant common mode or differential input voltage is up to ± 500V; unity gain maximum gain error is 0.02%; largest nonlinear is 0.001%; common-mode rejection ratio CMRR = 86dB.
