IMPROVED_CMOS_MULTIVIBRATOR

Published:2009/6/23 22:23:00 Author:Jessie | From:SeekIC

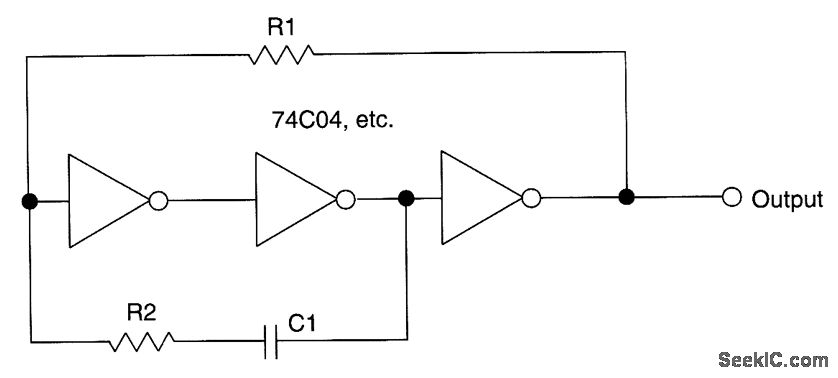

This circuit uses a protective resistor R2 in conjunction with feedback resistor R1. Together, they form a voltage divider to reduce the input voltage amplitude for IC1-a so that the protective diodes never conduct. This improves temperature and voltage stability of the multivibrator.
