IMPEDANCE_BUFFER

Published:2009/6/29 22:15:00 Author:May | From:SeekIC

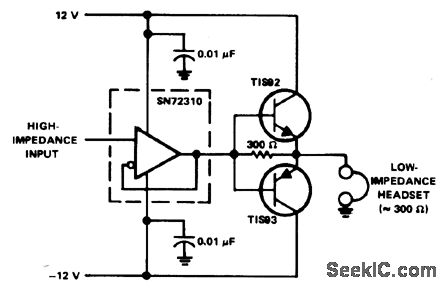

Complementary-transistor output stage provides required low impedance for driving headphones from SN72310 voltage-follower opamp. Supply is ±12V.- The Linear and Interface Circuits Data Book for Design Engineers， Texas Instruments,Dallas,TX,1973,p 4-41
