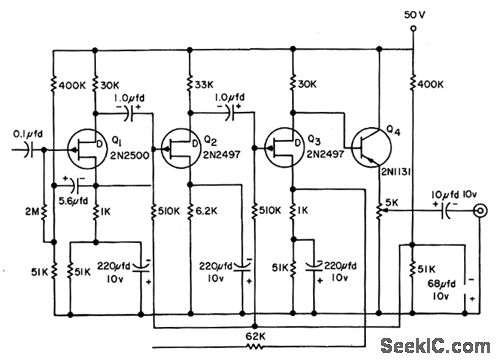

IHREE_FET_A_C_AMPLIFIER

Published:2009/7/10 5:29:00 Author:May | From:SeekIC

Can be used in applications requiring amplilcation of microvolt signals, as in ultrasensitive preamps for null detectors, medical research equipment, recorders, osciloscopes, and low-level transducers. With 100K generator resistance, amplifier 3-db bandwidth is 1 cps to 40 kc.-L.J. Sevin, Jr., Field-Effect Transislors, McGraw-Hill, N.Y., 1965, p 107.
