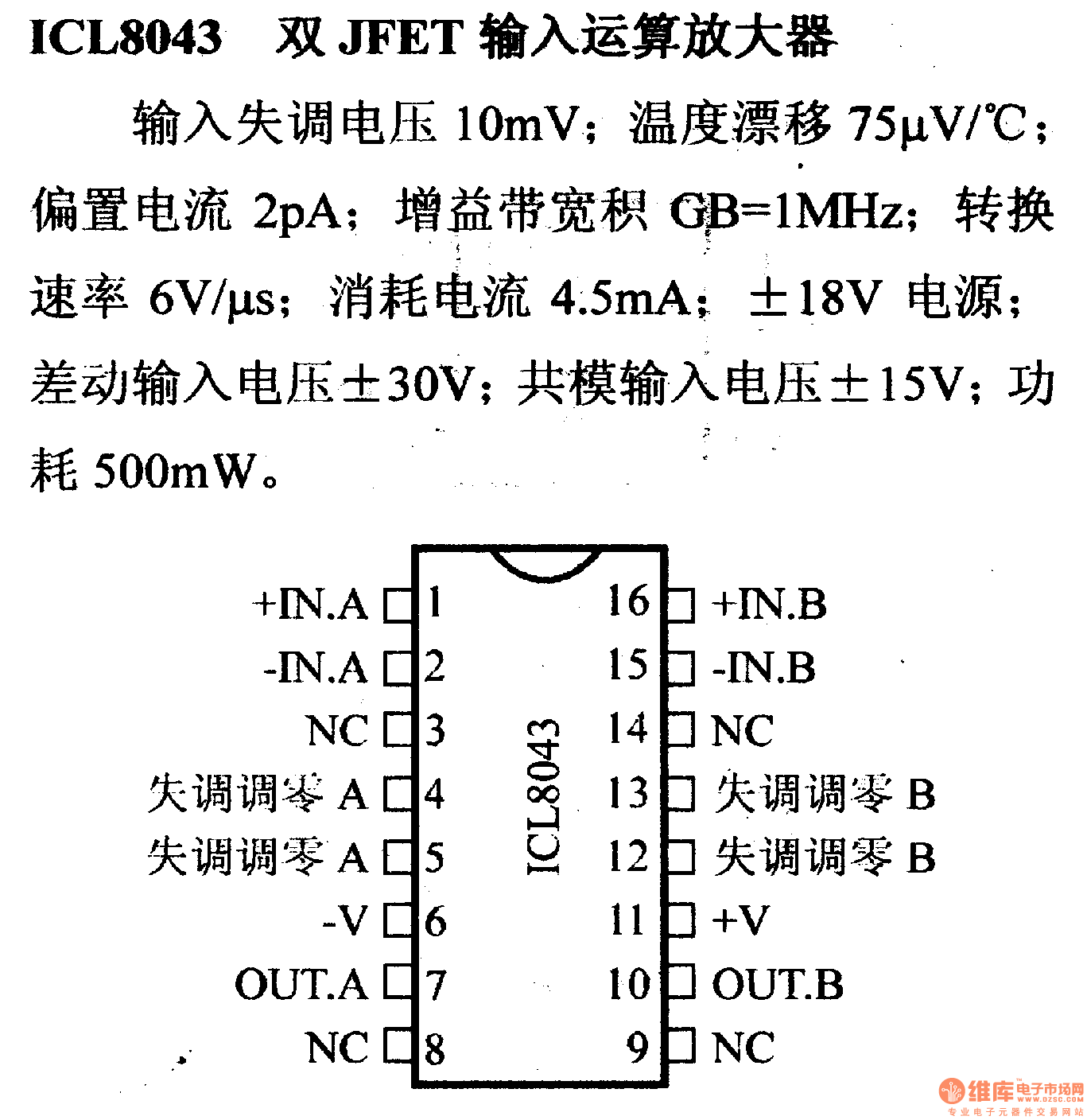

ICL8043 dual JFET input op amp and its main characteristics

Published:2012/12/12 2:32:00 Author:Ecco | Keyword: dual JFET , input op amp, main characteristics | From:SeekIC

Input offset voltage is 10mV ; temperature drift is 75μV / ℃; bias current is 2pA ; Gain Bandwidth Product GB = 1MHz; conversion rate is 6V/μs ; Current consumption is 4.5mA ; power supply is ± 18V; differential input voltage is ± 30V ; common-mode input voltage is ± 15V; ​​power consumption is 500mW.
