High-speed programmable gain amplifier circuit composed of the INA110

Published:2011/8/12 4:23:00 Author:Rebekka | Keyword: High-speed , programmable gain amplifier | From:SeekIC

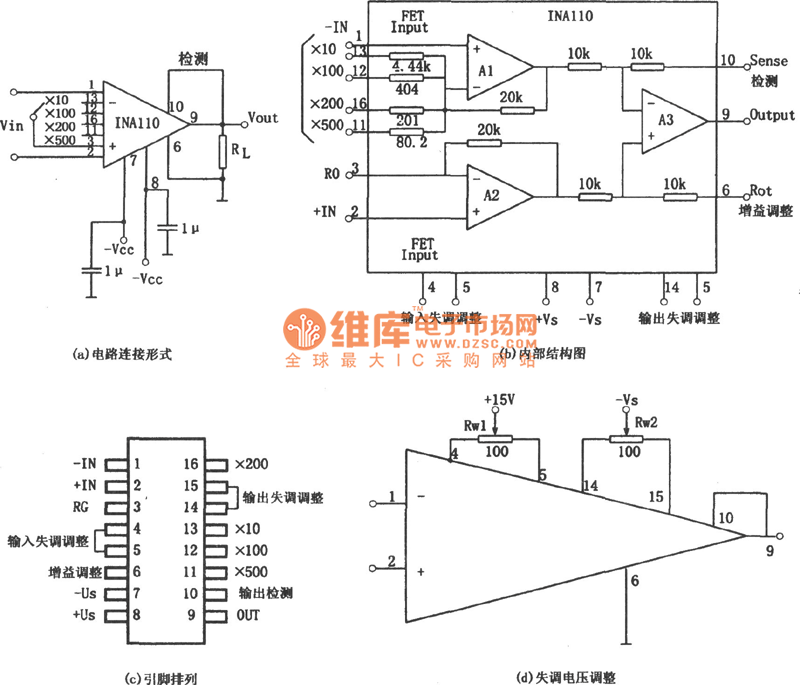

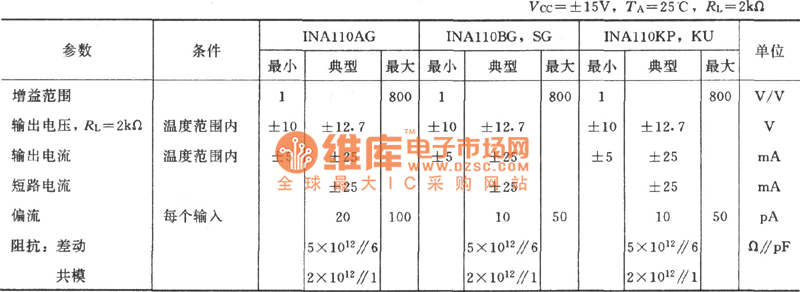

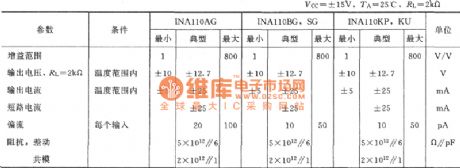

The figure shows the high-speed programmable gain amplifier circuit. The main circuit is composed of the rapid and stable instrument integration op-amp INA110. Because the INA110 builds time fast, so it is the ideal amplifier circuit for the high speed or multiple data acquisition system. When the gain Av = 100, its build time can be up to 3 us.
