High precision selective amplifier circuit diagram

Published:2011/7/28 1:24:00 Author:Nicole | Keyword: High precision, selective amplifier | From:SeekIC

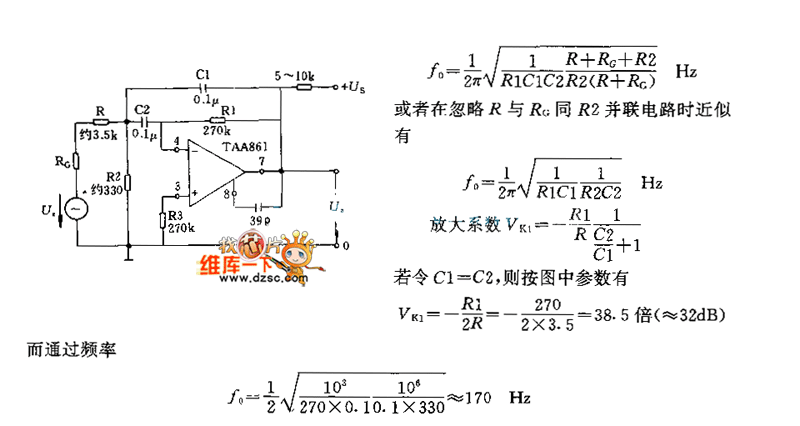

The ordinary selective amplifier adopts double T network, it requires thatthe component parameters have high precision. But if you use the circuit as shown in the figure, you can avoid it. At the low pass, the passing frequency f0 is determined by C1, and by C2 at the high pass.
