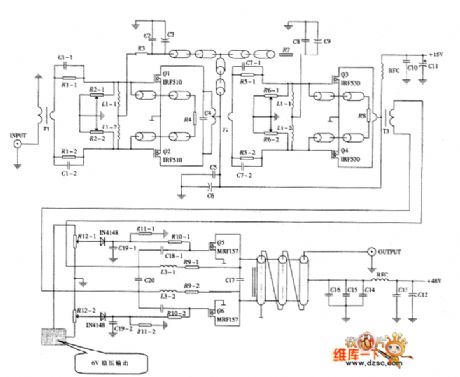

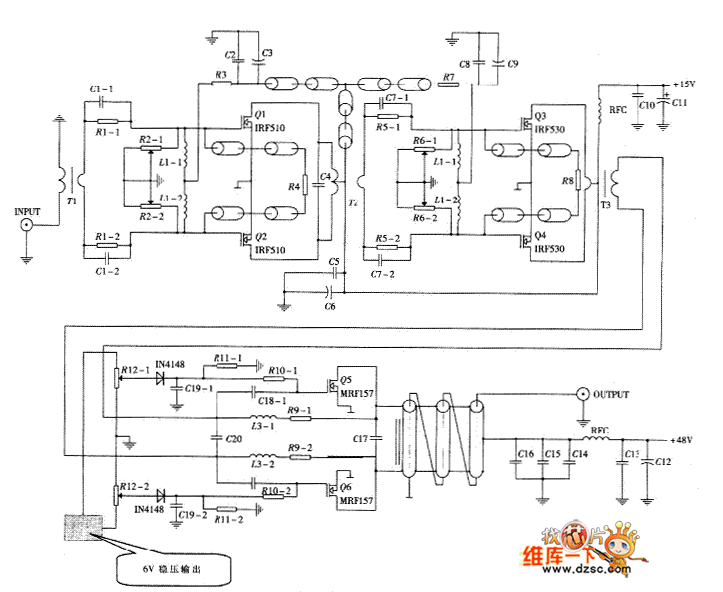

High-power RF pulse power amplifier circuit diagram

Published:2011/12/9 0:43:00 Author:Ecco | Keyword: High-power, RF , pulse, power amplifier | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Amplifier_Circuit/High_power_RF_pulse_power_amplifier_circuit_diagram.html

Print this Page | Comments | Reading(3)
