High gain amplifier circuit

Published:2012/9/10 21:01:00 Author:Ecco | Keyword: High gain , amplifier | From:SeekIC

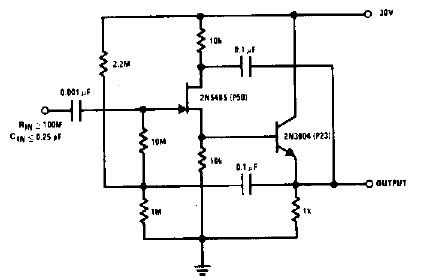

In this circuit nothing is left to chance in reducing input capacitance. The 2N5485, which has a very low-capacity legacy first, is always operated as a source follower with gate bias bootstrap. Source: discovercircuits
