High_gain_AF_preamplifier_using_an_ECG1053_chip

Published:2009/7/20 4:37:00 Author:Jessie | From:SeekIC

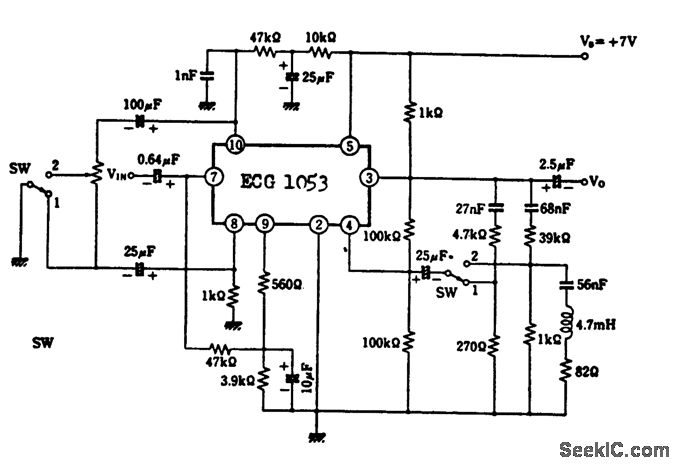

High-gain AF preamplifier using an ECG1053 chip. Frequency response is from 30 hertz to 15 kilohertz. Minimum voltage gain is 93 dB (courtesy GTE Sylvania Incorporated).
