High fidelity amplifier circuit

Published:2012/9/10 21:03:00 Author:Ecco | Keyword: High fidelity , amplifier | From:SeekIC

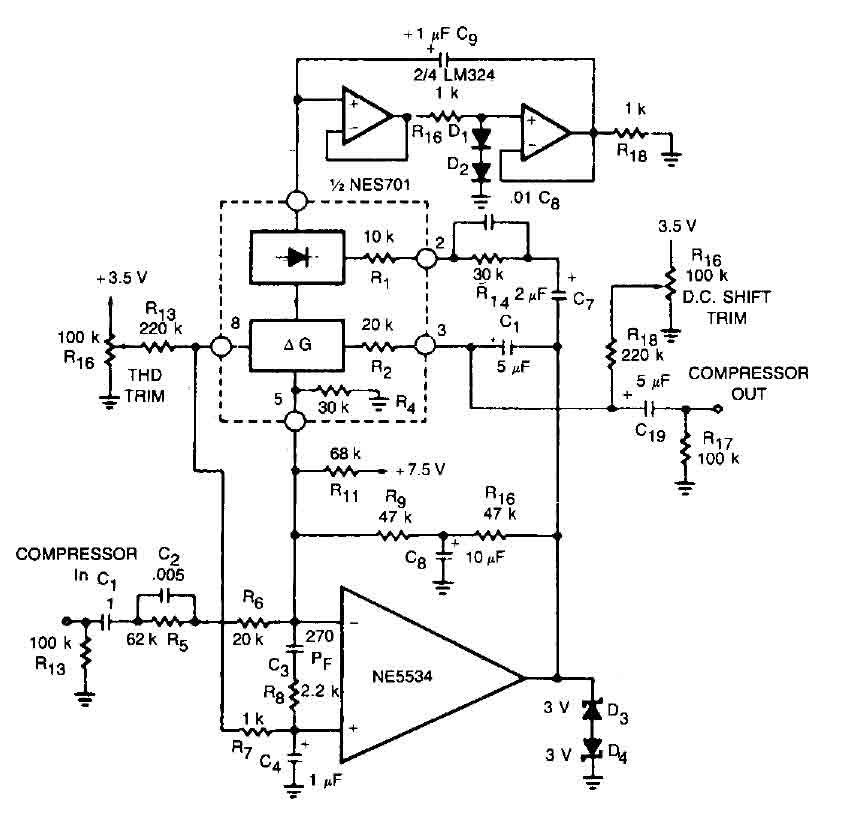

This circuit for a compressor uses a high-fidelity external op amp, and a high gain and wide bandwidth. A compensation network input is necessary for stability. The rectifier capacitor (Cg) is not grounded. but it is linked to the output of an op amp circuit. Source: discovercircuits
