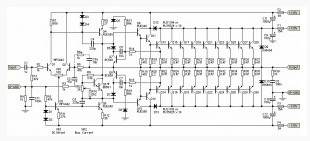

High Power Audio Amplifier 1500 Watt

Published:2013/3/18 1:03:00 Author:Ecco | Keyword: High Power, Audio Amplifier, 1500 Watt | From:SeekIC

This Powerfull audio amplifier can provide a 2kW power peaks, and 1.5kW continuously, which means that the amplifier can burn your most famous speakers. To provide this power in action you can connect (What do I highly do not recommend), two series-connected 8-ohm speaker in AC 220. In this case the dynamics will be on the same 110V current voltage into 8 ohms – 1,500 W. What do you think will last a long time whether in this mode acoustics. Transformer 2 x 90V will give no-load voltage ± 130V (260V between the outermost points of the rectifier), so that the power supply to operate with extreme caution.
