High Frequency Thyristor Trigger Circuit

Published:2011/7/21 9:16:00 Author:Joyce | Keyword: High Frequency , Thyristor , Trigger | From:SeekIC

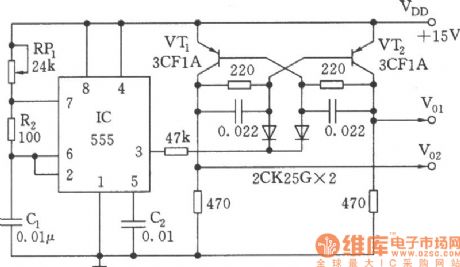

As shown in the figure, 555 ,RP1, R2, C1 constitute the astable multivibrator.The oscillation frequency and duty ratio can be altered by adjusting RP1. The output pulse will trigger the flip-flop composed of VT1 and VT2. V01, V02 can trigger two thyristors alternatively .
