Hi-Fi Preamplifier

Published:2012/11/19 21:36:00 Author:muriel | Keyword: Hi-Fi , Preamplifier | From:SeekIC

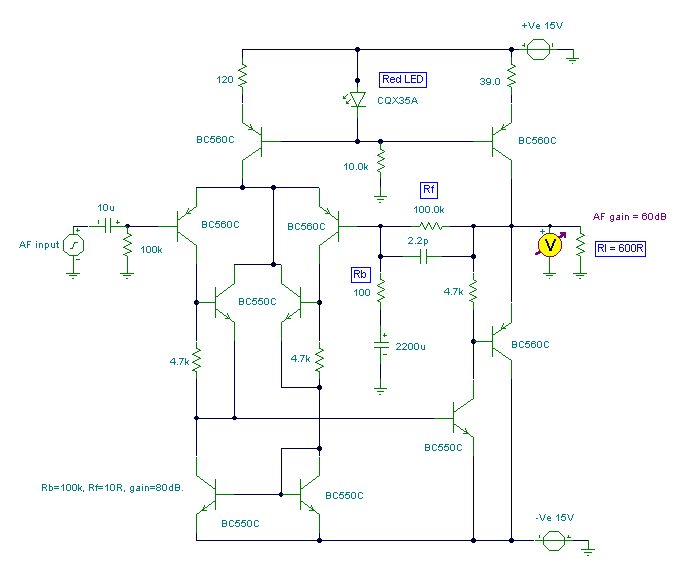

This circuit was submitted by Graham Maynard from Newtownabbey, Northern Ireland. It has an exceptionally fast high frequency response,as demonstrated by applying an 100kHz squarewave to the input. All graphs were produced using Tina Pro.
