HYDROPHONE_PREAMPLIFIER

Published:2009/7/23 21:59:00 Author:Jessie | From:SeekIC

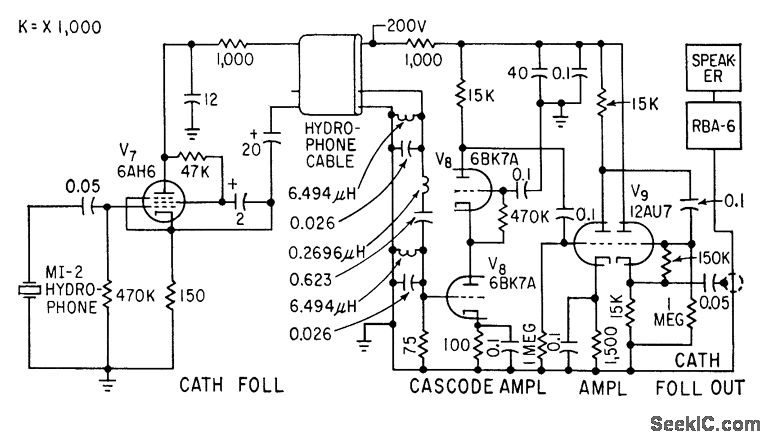

Cathode-follower hydrophone isolation amplifier and high-gain preamplifier feed Navy RBA-6 low-frequency radio receiver on trawler, to receive modulated 21-kc beam that transmits trawl net depth data.-F. H. Stephens, Jr., Underwater Telemeter for Trawl Fishing, Electronics, 32:13, p 66-68.
