HOLD_AMPLIFIER

Published:2009/7/14 3:34:00 Author:May | From:SeekIC

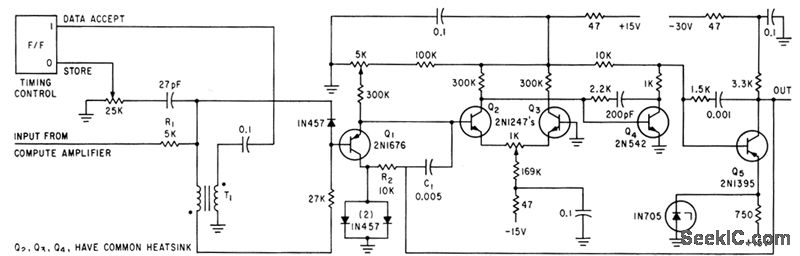

Samples output of compute amplifier at end of each word, to provide d-c output for serial decoder and permit timesharing of computer amplifier. Full-scale output is -10 v d-c.-R. M. Centner and J. R. Wilkinson, New Approach to Serial Decoding. Eliminates Static Storage, Electronics, 35:34,p 32-35.
