HI_Z_MICROPHONE_BUFFER_AMPLIFIER

Published:2009/6/22 22:39:00 Author:May | From:SeekIC

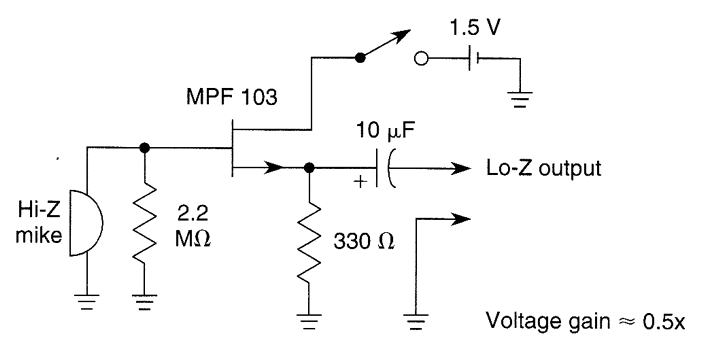

A low impedance output from a high-Z microphone can be obtained with this circuit. No voltage gain is obtained, but a power gain is obtained because the output impedance is much lower (300 Ω), with -6-dB voltage gain.
