HIGH_VOLTAGE_FLASH_PULSER

Published:2009/7/14 4:17:00 Author:May | From:SeekIC

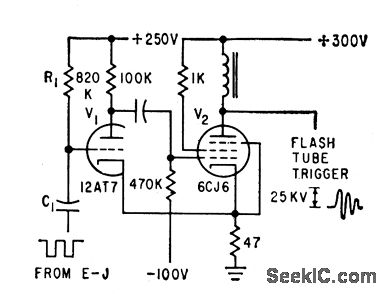

Two identical pulse generators are used to fire two flash tubes alternately lm high-speed strobe. One unit is coupled to each plate of an Eccles-Jordan trigger, to produce required alternating trigger sequence.-L. H. Barrett, New Circuit Improves Stroboscope Versatility, Electronics, 32:32, p 116-118.
