HIGH_INPUT_IMPEDANCE_WINDOW_COMPARATOR

Published:2009/7/7 4:02:00 Author:May | From:SeekIC

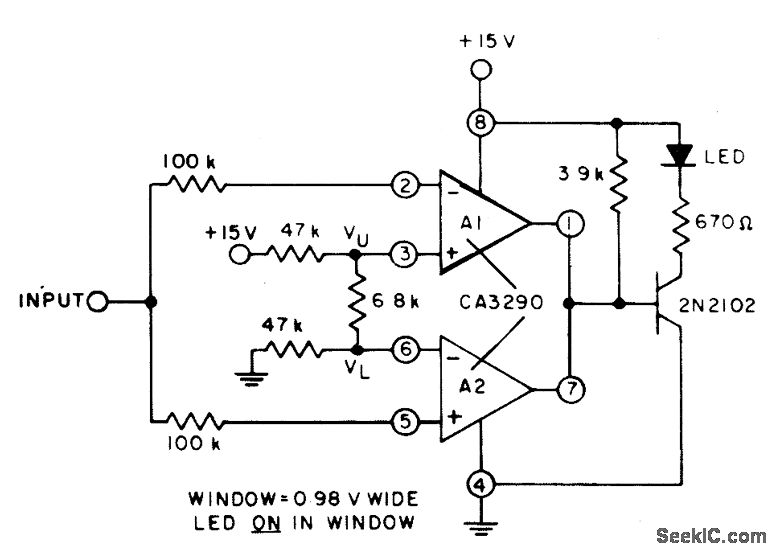

The circuit uses both halves of the CA3290 BiMOS dual voltage comparator. The LED will be turned 0N whenever the input signal is above the lower limit (VL) but below the upper limit (VU).
