HIGH_GBW_OP_AMP

Published:2009/6/24 3:15:00 Author:Jessie | From:SeekIC

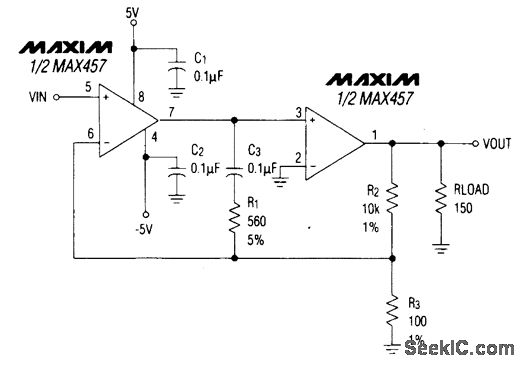

You can build a composite amplifier featuring high gain, wide bandwidth, and good dc accuracy by cascading the sections of a dual video amplifier and adding two appropriate phase-compensation components. The op amp drives a 150-Ω load and provides a closed-loop gain of 40 dB.
