HARMONIC_MIXER

Published:2009/7/16 3:32:00 Author:Jessie | From:SeekIC

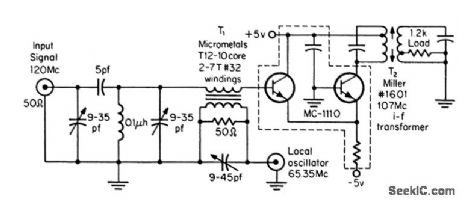

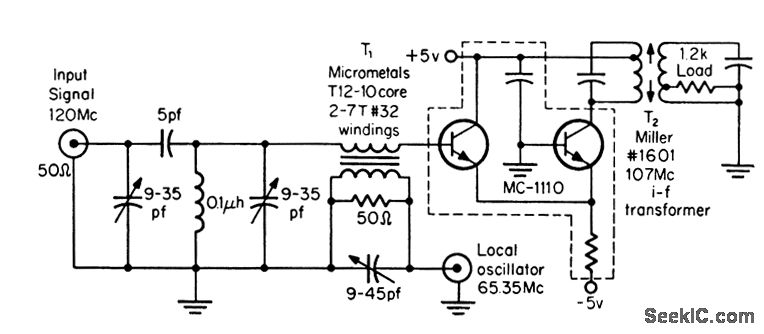

Two-transistor integrated circuit is used in nonlinear mode for converting 120 Mc to 10.7 Mc with conversion of 29.4 db, noise figure of 11 db, and sensitivity of -105 dbm. Bandwidth, including i-f stages that follow mixer, is about 500 kc.-J. E. Thompson, An Integrated Harmonic Mixer, Motorola Application Note AN-154, December, 1965.
