HAMMER_DRIVER_FOR_COMPUTER_LINE_PRINTER

Published:2009/7/15 23:23:00 Author:Jessie | From:SeekIC

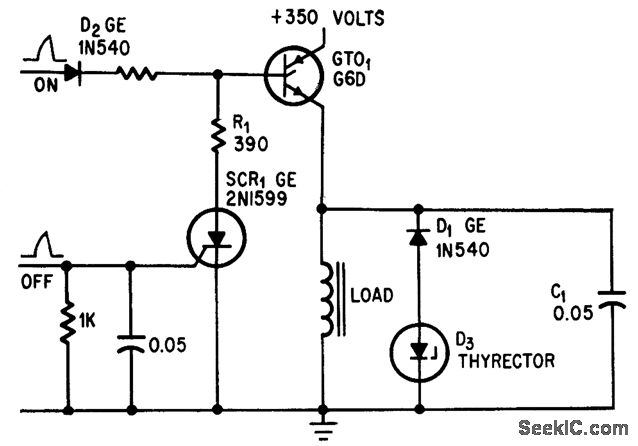

Gale turnoff scr overdrives load solenoid momentarily by connecting it across 350-v bus and disconnecting before over heating occurs. Load current rise and fall limes are less than one millisec.-D. R. Grafham, Now the Gale Turnoff Switch Speeds Up D-C Switching, Electronics, 37:12, p 64-71.
