Fast_settling_op_amp_with_gain_of__1

Published:2009/7/19 21:30:00 Author:Jessie | From:SeekIC

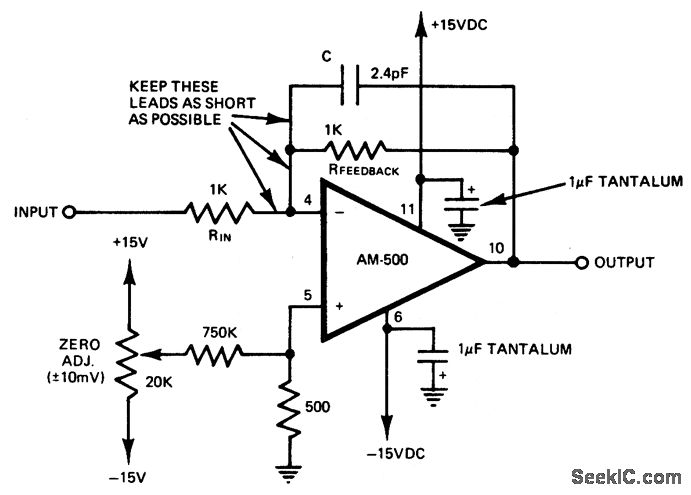

Fast-settling op amp with gain of -1. For gains larger than -1 use an input resistor valued at 500 ohms or less and pick a feedback resistor for the required gain, i.e., 1K for -2, 1.5K for -3, etc. (courtesy Datel Systems, Inc.).
