FOUR_QUADRANT_PHOTO_CONDUCTIVE_DETECTOR_AMPLIFIER

Published:2009/6/24 22:30:00 Author:May | From:SeekIC

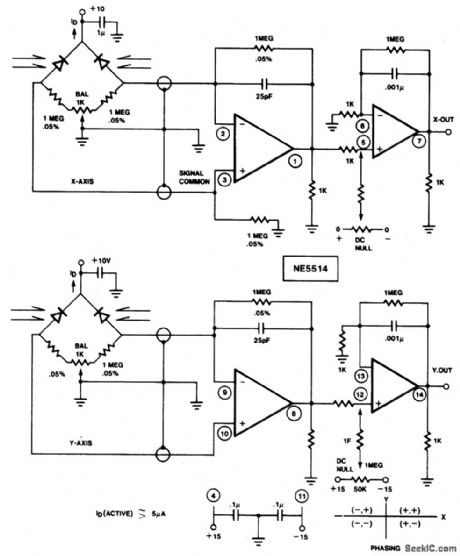

Use this circuit to sense four quadrant motion of a light source. By proper summing of the signals from the X and Y axes, four quadrant output may be fed to an X-Y plotter, oscilloscope, or computer for simulation. IC = NE/SE5514
