FOUR_LEVEL_VOLTAGE_COMPARATOR

Published:2009/7/12 20:52:00 Author:May | From:SeekIC

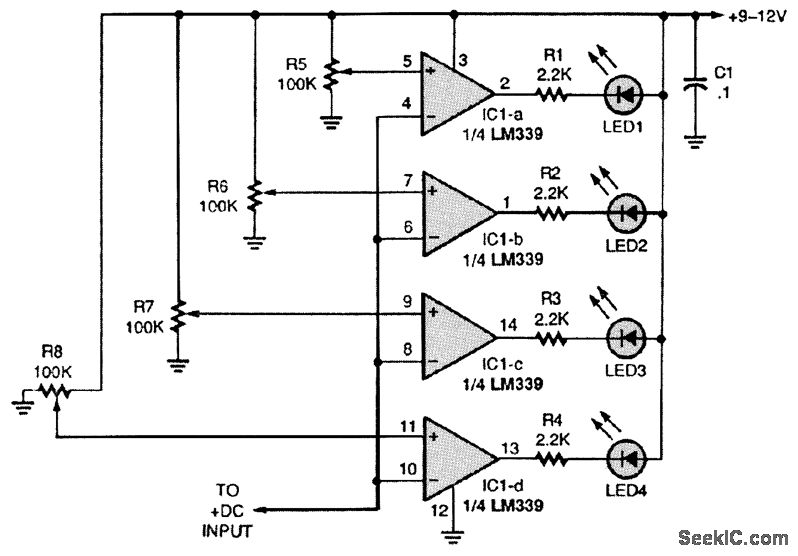

This four-level voltage detector can be used as a bar-graph voltmeter. Simply set each potentiometer (R5 to R8) for a specific voltage.
