FINGERTIP_SIZE_SERVO_AMPLIFIER

Published:2009/7/16 3:58:00 Author:Jessie | From:SeekIC

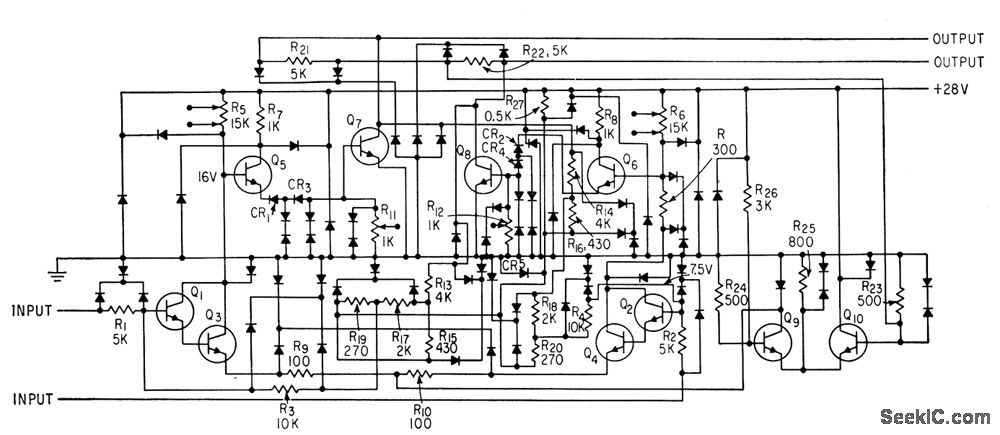

Direct-coupled class A servo amplifier diffused into 0.75-inch.diameter silicon wafer gives power output of 1.5 w and overall closed-loop gain of 200. Distributed diode planes are introduced by substrate,-M. W. Aarons, Putting a Servo Amplifier on a Small Silicon Wafer, Electronics, 35:52, p 33-35.
