FET logic probe circuit

Published:2011/5/4 18:55:00 Author:Christina | Keyword: FET, logic probe | From:SeekIC

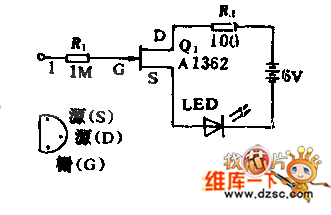

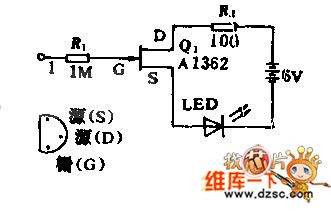

Field-effect transistor with high input impedance can make the LED light when the input port appears logic 1, and it will not produce the load effect on the monitored circuit.
