FET_PHONO_CARTRIDGE_PREAMP

Published:2009/6/18 23:51:00 Author:May | From:SeekIC

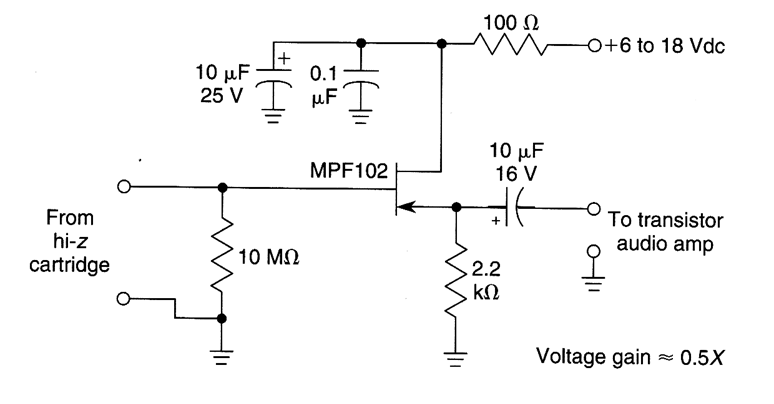

A high-Z phono cartridge can be rnatched to a low-Z amplifier with this circuit. The FET provides a current gain of over 1000x and a voltage gain of about 0.5x.
