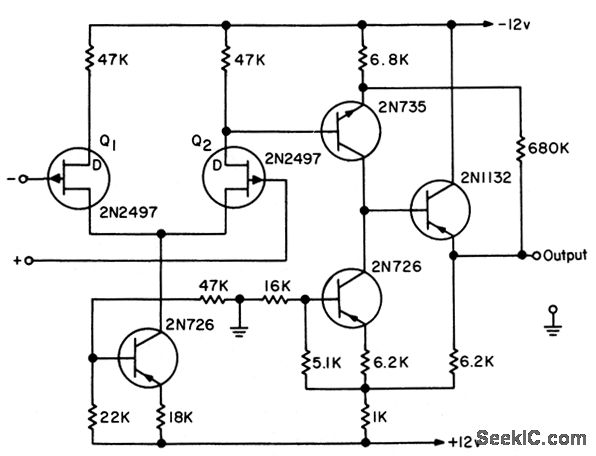

FET_OPERATIONAL_AMPLIFIER

Published:2009/7/14 20:35:00 Author:May | From:SeekIC

Open-loop voltage gain at direct current is above 100,000. When operated open-loop, makes excellent voltage comparator having high resolution.-L. J. Sevin, Jr. Field-Effect Transistors, McGraw-Hill, N.Y. 1965, p107.
