FET_CASCODE_VIDEO_AMPLIFIER

Published:2009/7/1 1:49:00 Author:May | From:SeekIC

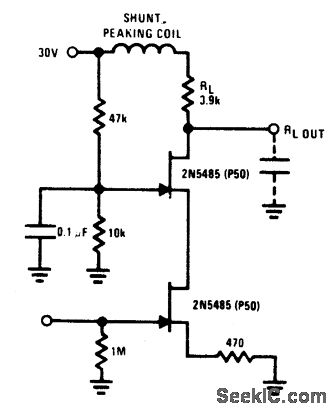

The FET cascode video amplifier features very low input loading and reduction of feed-back to almost zero. The 2N5485 is used be-cause of its low capacitance and high Yfs. Bandwidth of this amplifier is limited by R1, and load capacitance.
