FAST_TTL_COMPATIBLE_COMPARATOR

Published:2009/7/12 20:53:00 Author:May | From:SeekIC

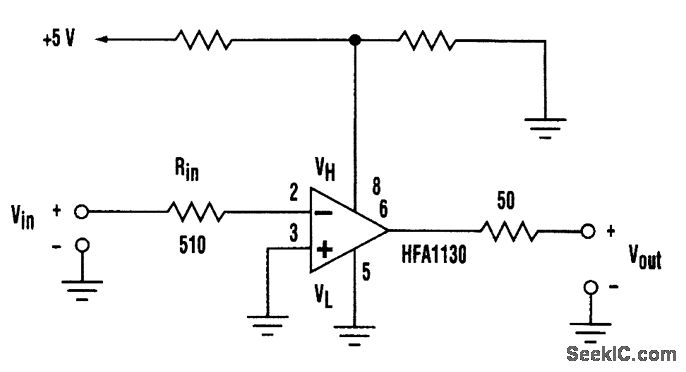

The HFA1130 by Harris Semiconductor is useful as a comparator. Depicted is an inverting 2-ns comparator with TTL-compatible output levels that are realized by using the HFA1130 output-limiting, current-feedback amplifier.
