FAST_RECOVERY_COLLECTOR_TRIGGERING

Published:2009/7/23 21:06:00 Author:Jessie | From:SeekIC

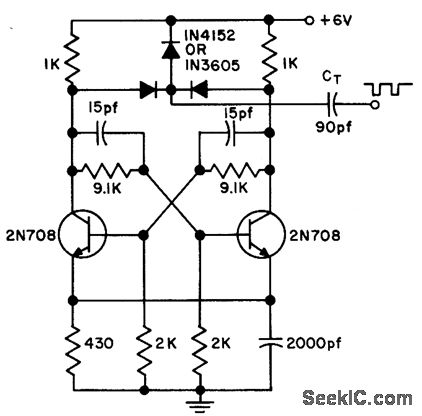

Additional diode, used in place of resistor from midpoint of diode pair to +6 v, has high back impedance to prevent shunting of trigger pulse during triggering period, and has low forward impedance to insure fast recovery. - Transistor Manual, Seventh Edition, General Electric Co., 1964, p 198.
