FAST_AMPLIFIER_FOR_RANDOM_TELEGRAPH_WAVE

Published:2009/7/16 22:34:00 Author:Jessie | From:SeekIC

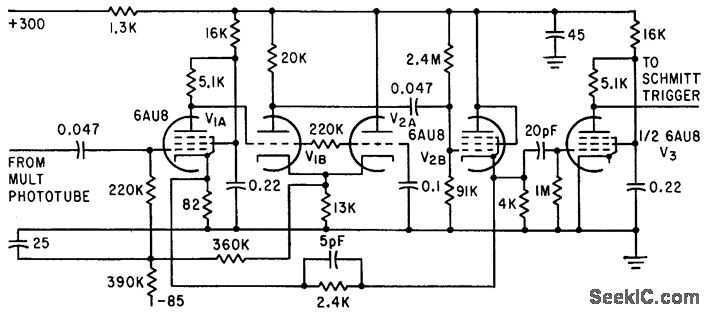

Amplifies small pulses above thresh-old value without being overloaded by large pulses derived from radioactive isotope and phosphor on envelope of multiplier photo-tube. Two feedback loops, similar to Oak Ridge-Fairstein and Brookhaven-Chase circuits, help to stabilize gain.-J. B. Manelis, Generating Random Noise with Radioactive Sources, Electronics, 34:36, p 66-69.
