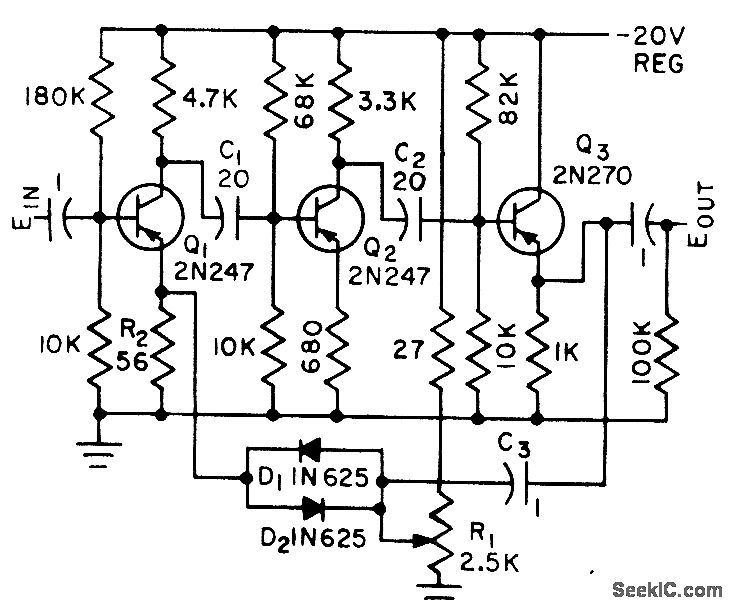

FAST_ACTING_NONLINEAR_FEEDBACK

Published:2009/7/15 23:15:00 Author:Jessie | From:SeekIC

Keeps output variation within 8 db for input level variation of 38 db. Amplifies 100-kc square waves and limits output amplitude without introducing phase distortion, Amplilcation is determined by input level. For signals below 5 my peak, 38 db of gain is provided, auto. matically diminishing for higher-level input signals. With 400.mY peak input, gain is slightly over unity.-L. H. Dulberger, Pulse Amplifer with Nonlinear Feedback, Electronics, 31:45, p 86-87.
