Easy 100 Watt Power Amplifier

Published:2013/3/18 1:01:00 Author:Ecco | Keyword: 100 Watt, Power Amplifier | From:SeekIC

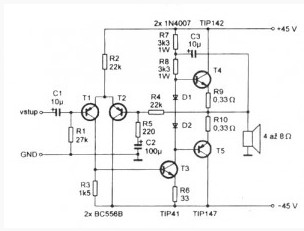

Through the use of powerful constituents (Darlington) transistor T4, T5, final stage managed to produce a sufficiently powerful amplifier of the five transistors, and three of them are shallow. The output stage operates in B, the displacement at the bases of transistors is defined by two diodes D1, D2, which excludes the building process. The input stage, the differential pair supports a “zero” level “to break” and closes the negative feedback circuit of AC. When you build should pay special attention to placement of elements on the board and the amplifier power supply to eliminate self-excitation of the amplifier, which can damage the output transistors connected to an amplifier and acoustic systems.
