ES4108-super VCD decoding integrated circuit

Published:2011/5/13 12:14:00 Author:Borg | Keyword: decoding, integrated circuit | From:SeekIC

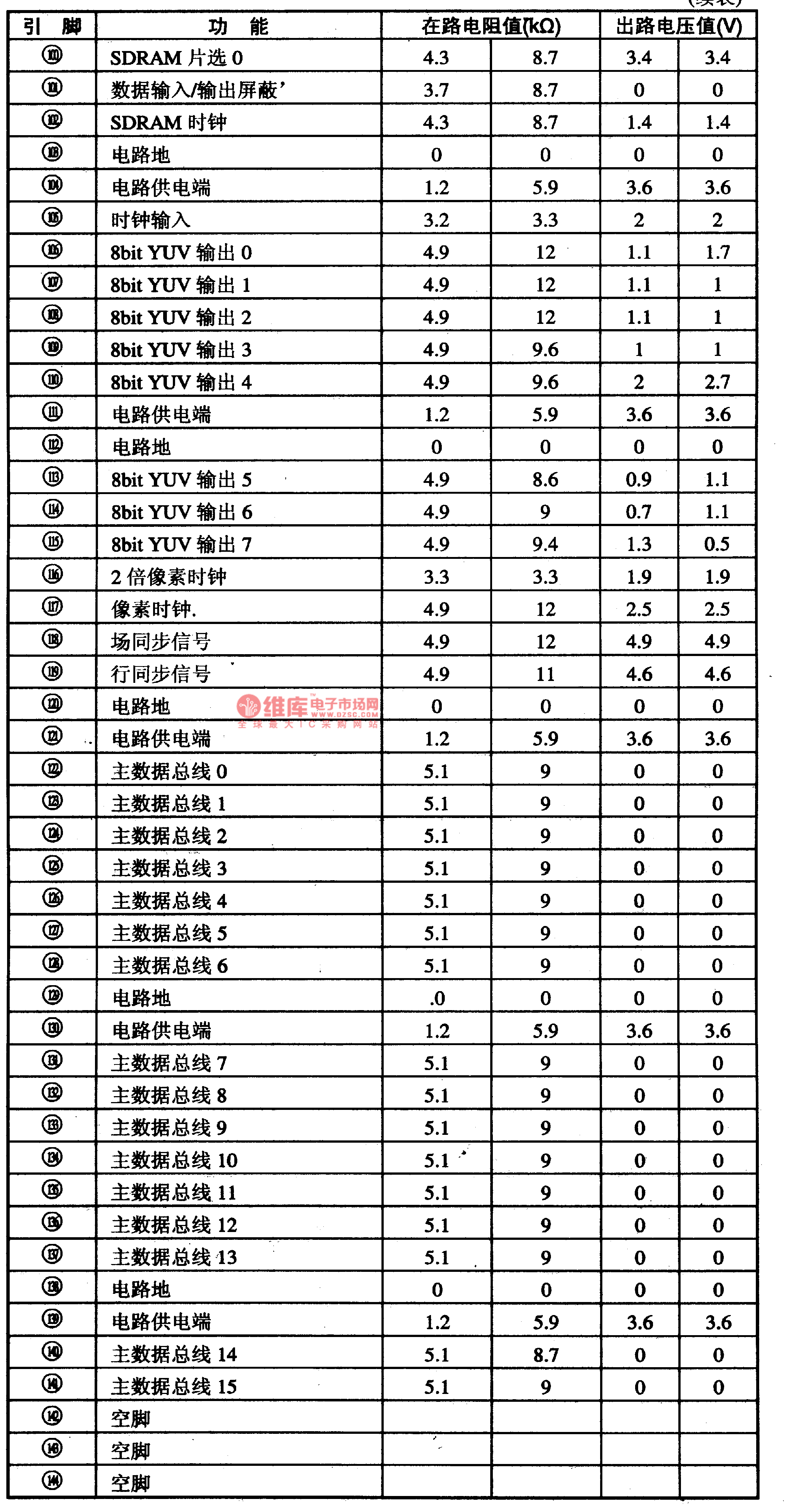

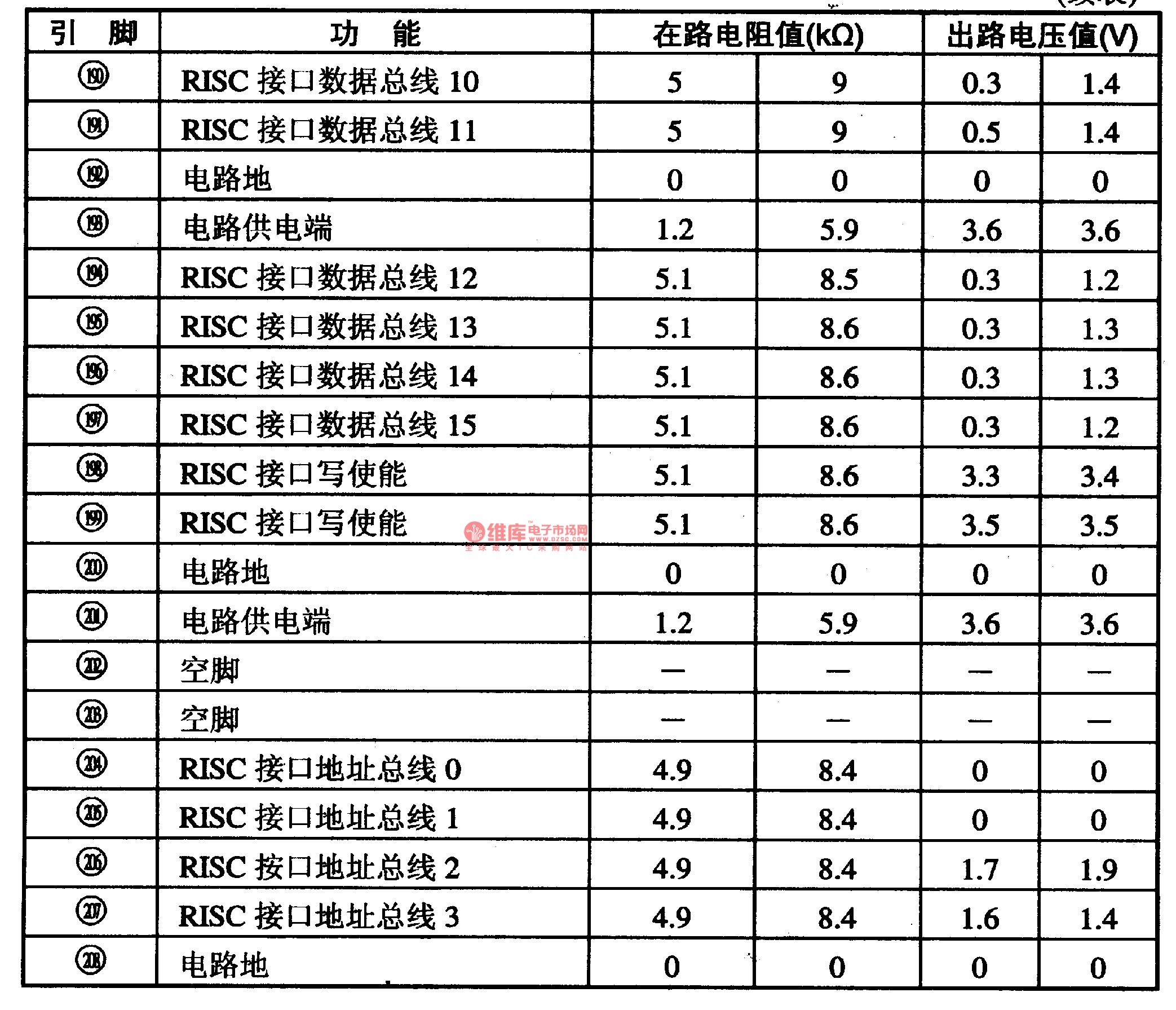

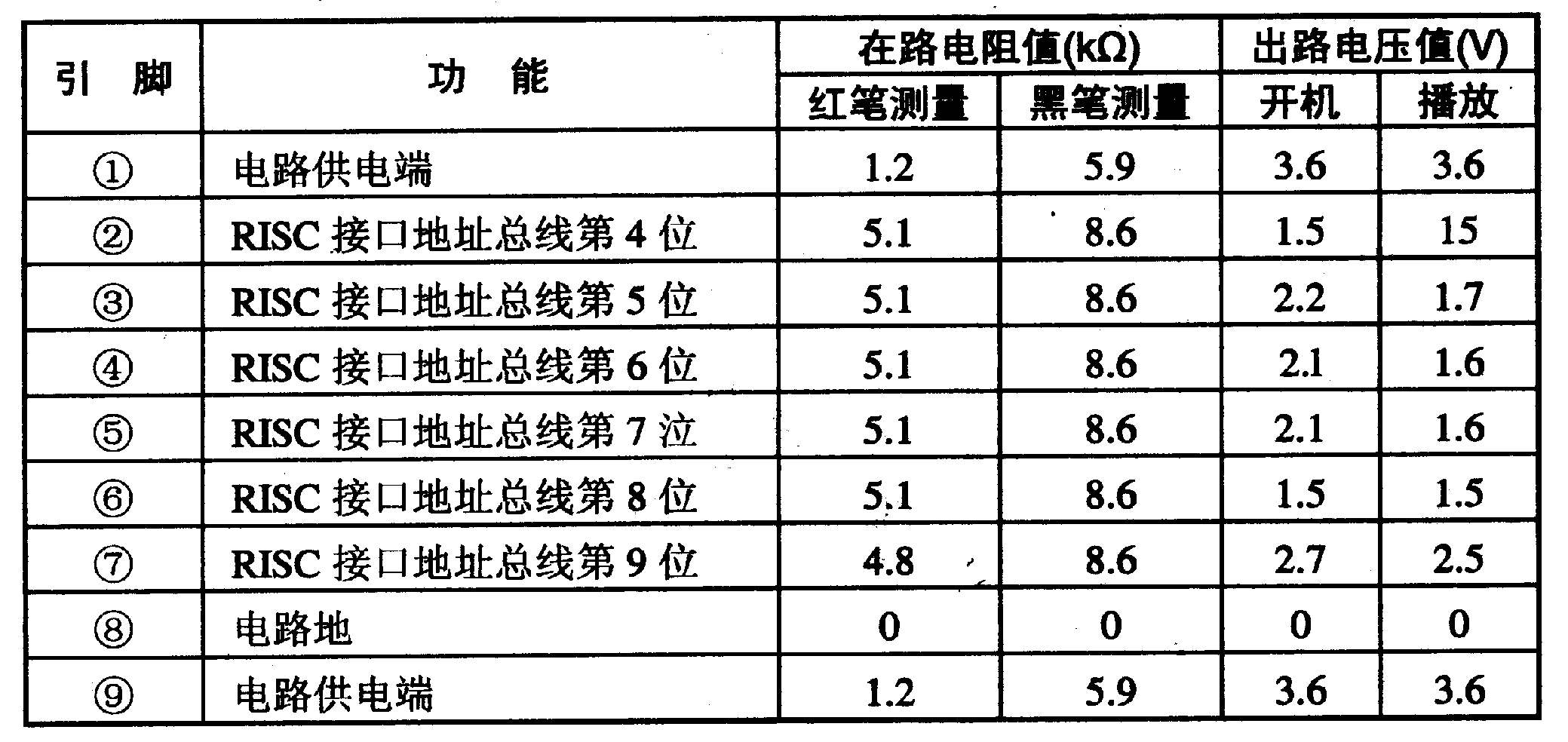

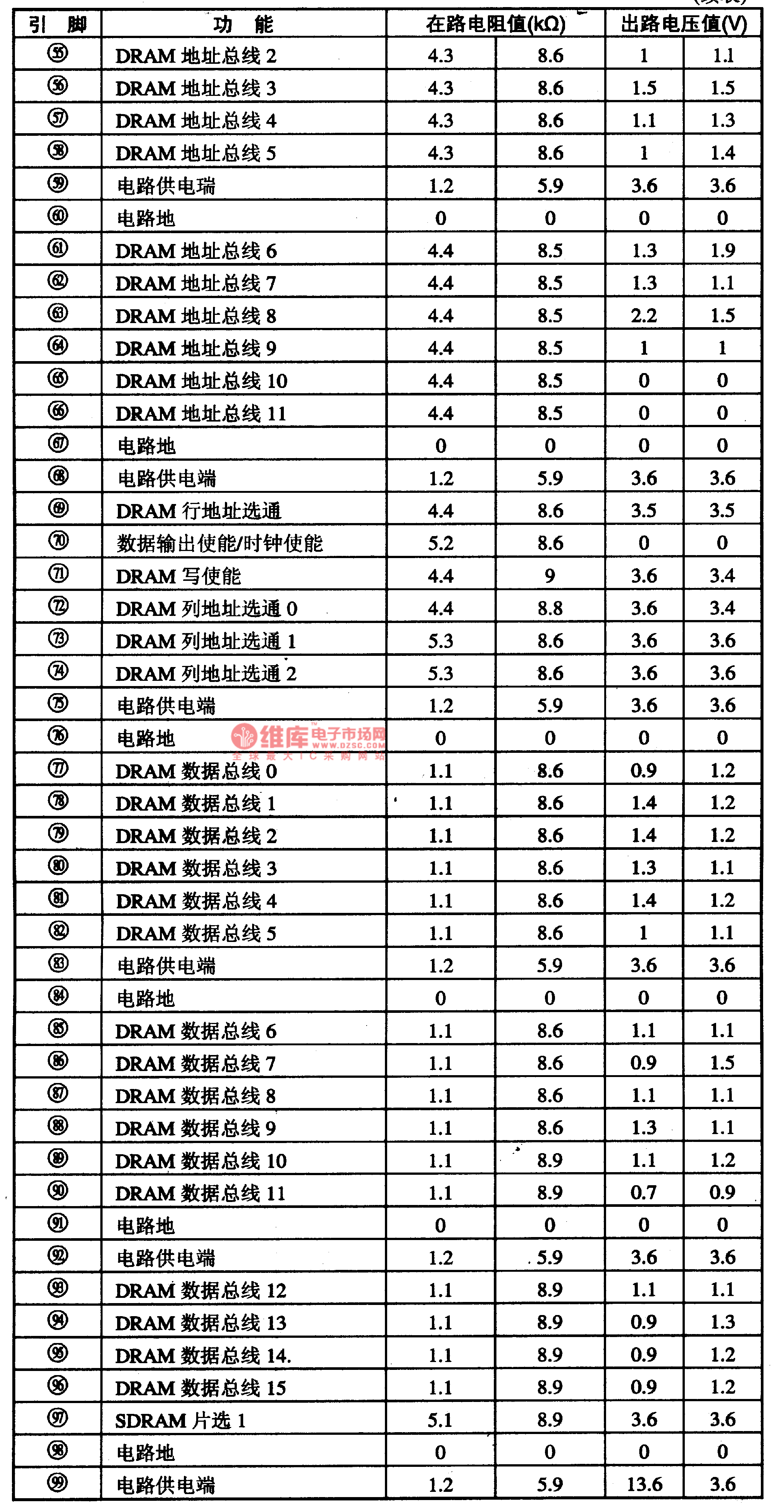

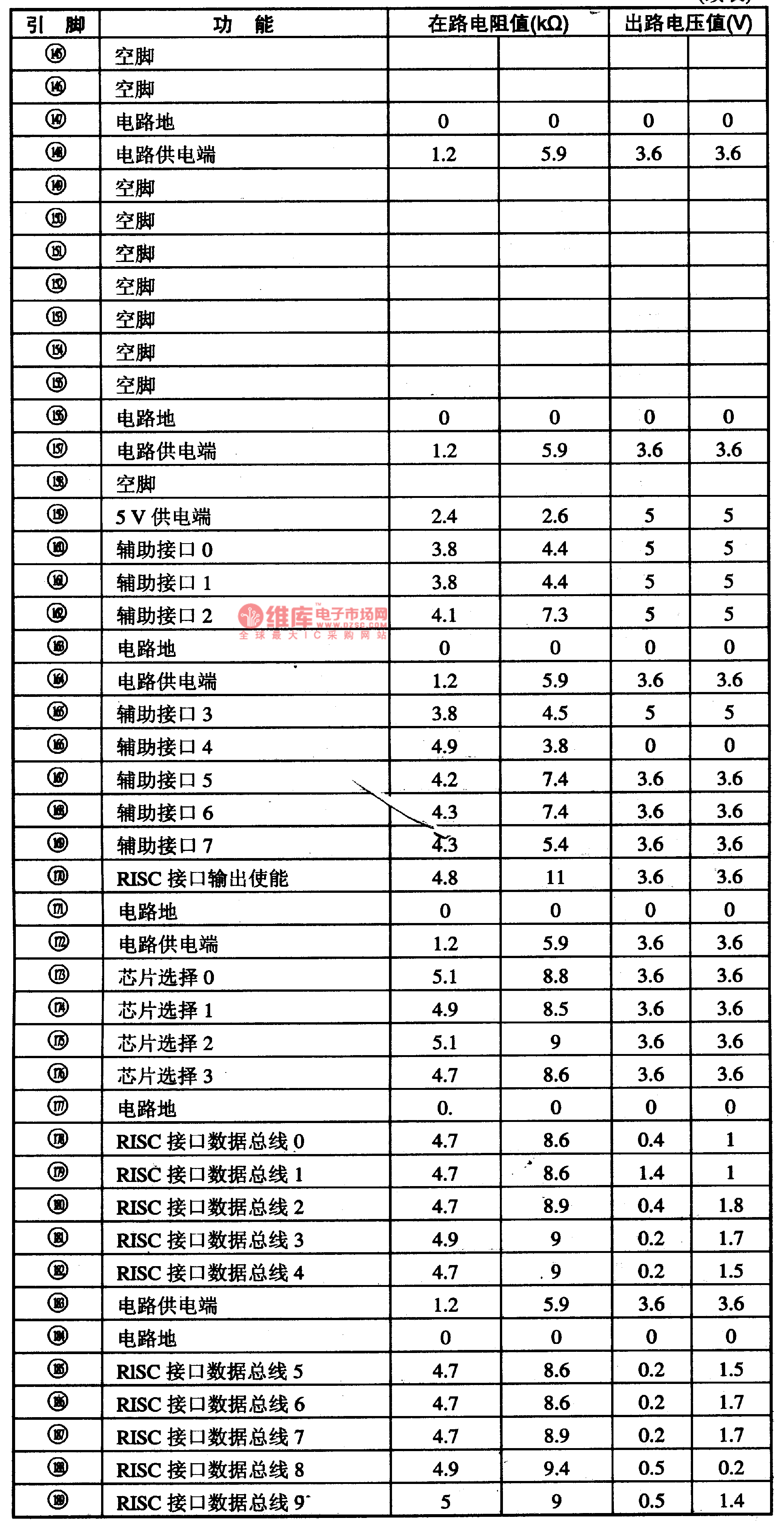

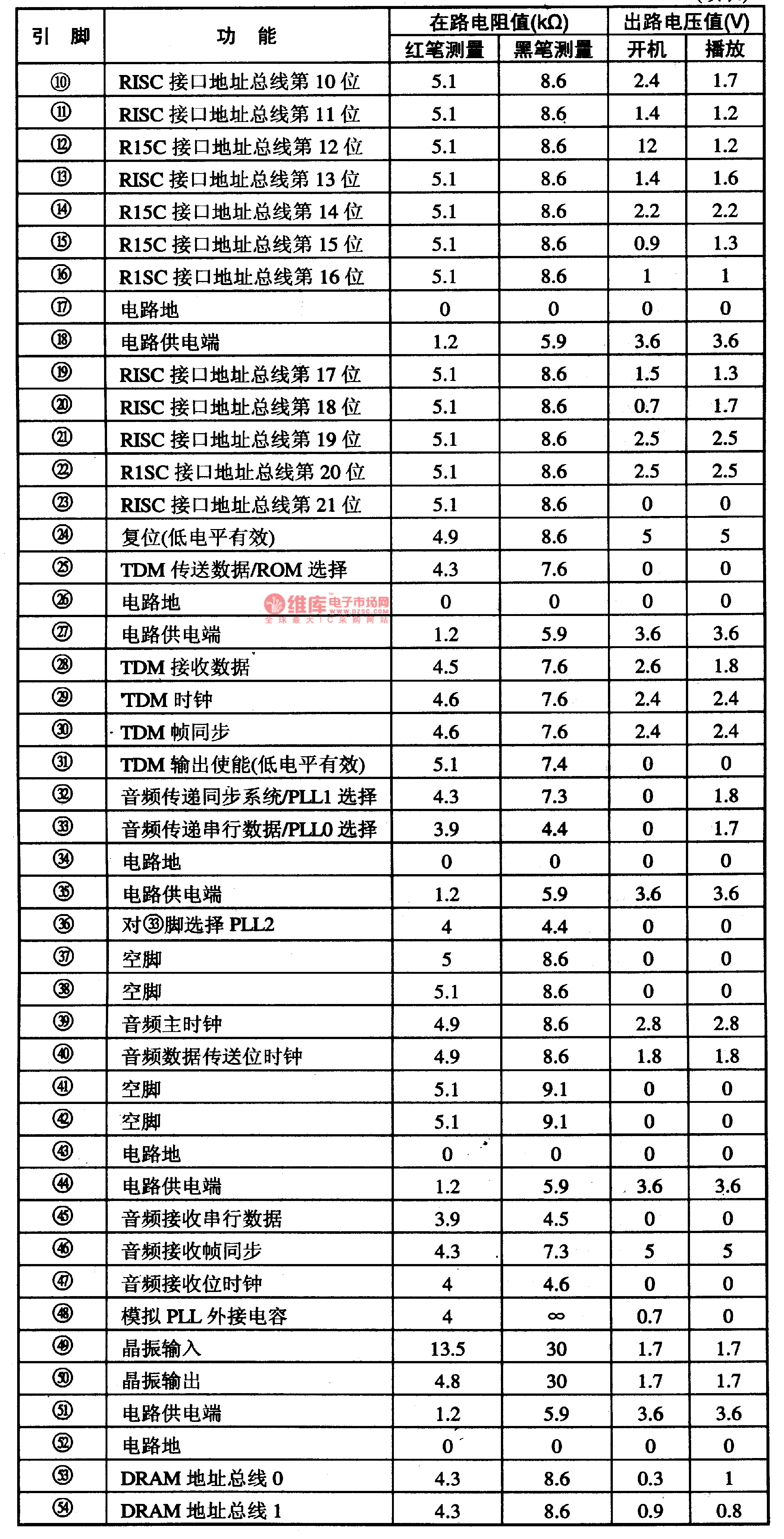

ES4108is a integrated decoding circuit of single door which is specially produced for VCD players by ESS Corp., USA.1.function featuresES4108 can decode SVCD and couple with VCD, in which there are simplified assemble RISC micro-processors of 32 bit orders and 32 bit data. It is based on the multimedia processor, and contains audio and video systems, and computing function chips of Hall decoding. Table 1-1 the internal circuit of ES41082.pin functions and data
