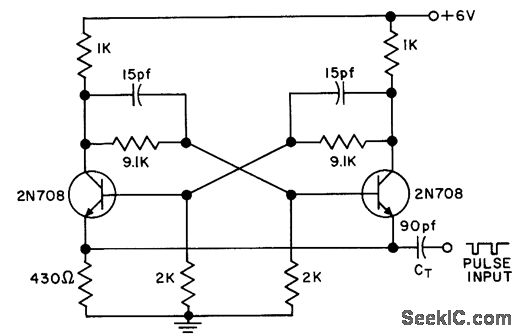

EMITTER_TRIGGERED_FLIP_FLOP

Published:2009/7/23 20:45:00 Author:Jessie | From:SeekIC

Pulse input, makes alternate sides of flip-flop conduct on alternate trigger pulses. Maximum trigger rate exceeds 2 Mc with trigger amplitude from 4 to 12 v. Chief limitation is high trigger current required.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 196.
