ELM95 series application circuit

Published:2011/6/14 2:13:00 Author:Christina | Keyword: application circuit | From:SeekIC

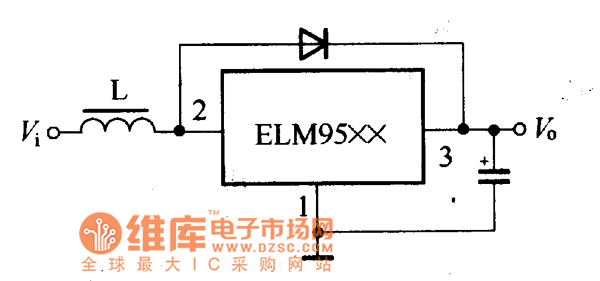

The ELM95 series DC/DC convertor application circuit is as shown in the figure. This circuit has very few external components, it only has the inductor, the diode and the capacitor. The ELM95 series DC/DC convertor application circuit In application you should pay attention to choose the small inductance coil resistance and it can not appear the magnetic saturation, the diode need to have the fast switching speed, the pressurization of the capacitor is at least 3 times of the output voltage.
