ELECTRONIC_BALANCED_INPUT_MICROPHONE_AMPLIFIER

Published:2009/6/24 3:30:00 Author:May | From:SeekIC

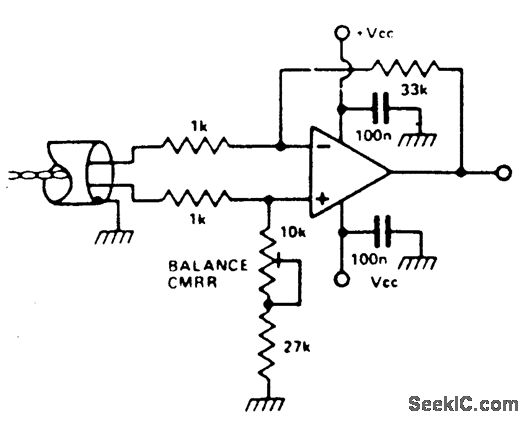

It is possible to simulate the balanced per-formance of a transformer electronically with a different amplifier. By adjusting the presets, the resistor ratio can be balanced so that the best CMRR is obtained. It is possible to get a better CMRR than from a transformer. Use a RC4136 which is a quad low noise op amp.
