ECM Mic Preamplifier circuit

Published:2012/11/19 21:50:00 Author:muriel | Keyword: ECM Mic, Preamplifier circuit | From:SeekIC

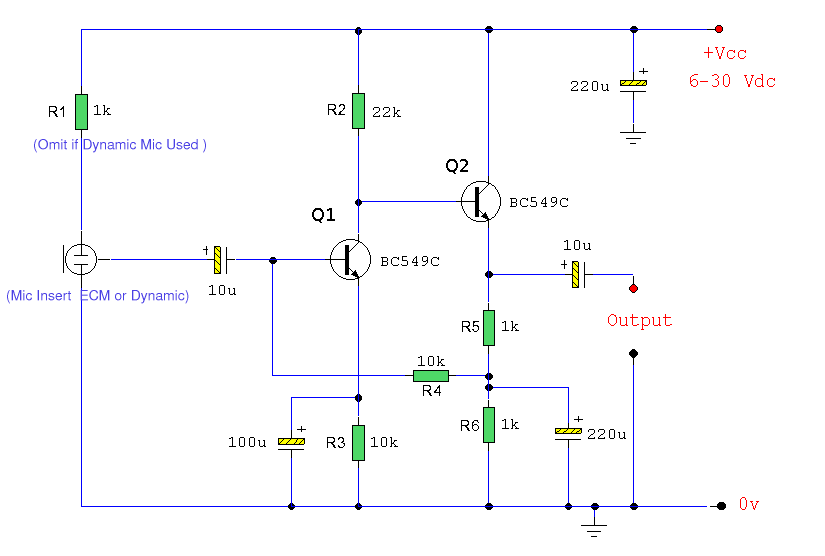

A microphone amplifier that may be used with either Electret Condenser Microphone (ECM) inserts or dynamic inserts, made with discrete components.
