Differential_input_instrumentation_amplifier

Published:2009/7/23 21:45:00 Author:Jessie | From:SeekIC

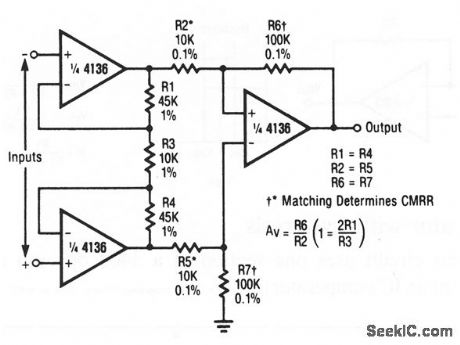

This circuit uses three sections of a 4136 to form an instrumentation amplifier, where the common-mode rejection ratio depends on the matching of resistors.
