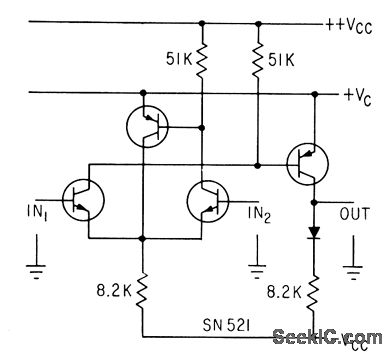

D_C_OPERATIONAL_AMPLIFIER

Published:2009/7/16 3:58:00 Author:Jessie | From:SeekIC

Open-loop voltage gain is 62 db, input impedance is 18,000 ohms differential and 10,000 ohms to ground, and output impedance is 8,000 ohms.-Operational Amplifiers are Getting Smaller, Electronics, 35:52, p 66.
