DIFFERENTIAL_VOLTAGE_COMPARATOR

Published:2009/7/11 4:34:00 Author:May | From:SeekIC

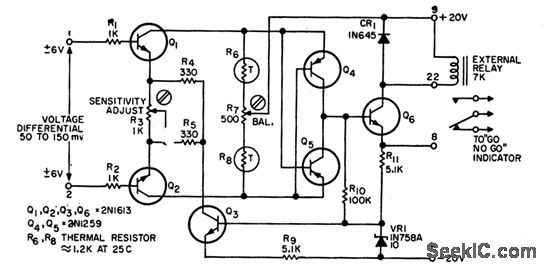

If the two input signals are within preset differential voltage relay is not actuated and GO indicator comes on.When the two signal differ too much,relay is actuated and NO-GO indication is provided.Used in commparing telemetered data received from satellite vehicle.-P.A.Walter,Differential Voltage Comparator.EEE.10:8,p24-25
