DIFFERENTIAL_MAGNETIC_INVERTER

Published:2009/7/17 1:30:00 Author:Jessie | From:SeekIC

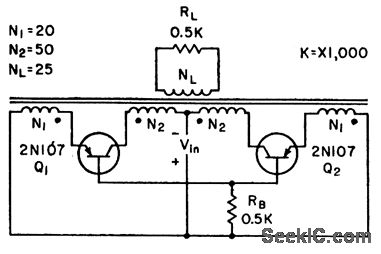

Oscillates reliably without use of current bias. Excessive drive will not cause transistor overheating. Differential action of collector and emitter windings greatly improves performance as compared to conventional nondif-ferential inverter and eliminates need for clipping diodes.-J. Markus, Handbook of Electronic Control Circuits, McGraw-Hill, N.Y., 1959, p 103.
